Mantar SM-40/33/23 | Airtight cabinet | outdoor, IP65, depth 230 mm

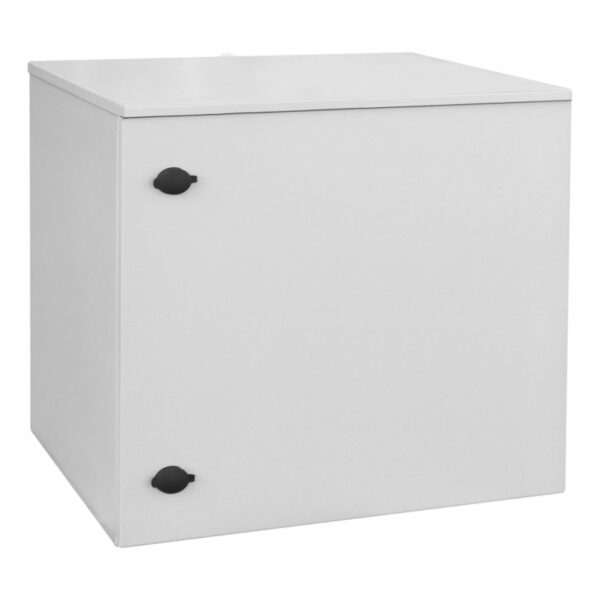

Mantar external cabinet SM-40/33/23 hermetic

Mantar external cabinet SM-40/33/23 hermetic is designed to be mounted with the included ø50 mm mastheads. The option is wall mounting in offices, network server rooms and control rooms of CCTV installations. The external walls are made of steel sheet. The cabinet is resistant to corrosion (covered by a 5-year warranty), hermetically sealed, sheet metal with Magnelis® coating 1.0mm thick, light gray color. It constitutes a mechanical shield for telecommunication equipment.

Features:

Features:

• Hermetic, made of sheet metal with Magnelis® coating 1 mm thick
• Degree of protection IP65, mechanical resistance IK10
• Powder-coated, colour: RAL7035- light grey, thick structure
• Locking with a hermetic lock
• Standard equipped with 2 holes ø16 mm and 1 hole ø24 mm located on the bottom wall, sealed with hermetic chokes

Additional equipment:

Additional equipment:

• Rack handles 10″ 6U vertically mounted (distance between handle front and door is 80mm)
• Shelf 10″ 1U depth 150mm (rack-mounted)
