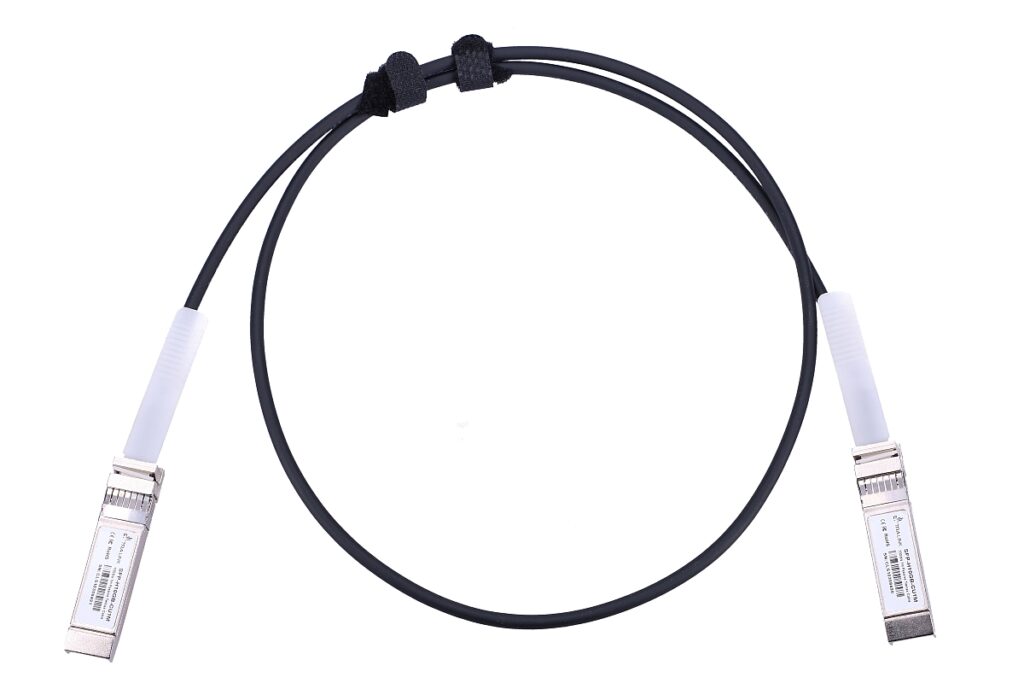

Ubiquiti UDC-3 | DAC Cable | SFP+, 3m

SFP+ UDC-3 copper DAC cable – high performance solution for 10 Gigabit networks

The DAC SFP+ UDC-3 DAC cable is compatible with Ubiquiti Unifi switches that support the 10 Gigabit DAC. The Ubiquiti UDC-3 has a length of 3 m and is ideal for short distance connections. It enables data transmission at a speed of 10 Gbps. The three-meter DAC SFP+ cable allows for economical connection of Unifi switches in adjacent cabinets and inside them. The passive DAC SFP+ DAC cable assemblies are a high performance input/output solution for Ethernet 10 G and Fiber Channel 10 G networks. With SFP+ copper modules, equipment manufacturers can achieve high port density, reduce configuration and operational costs, and reduce their power budget. The high-speed DAC cable assemblies meet and often exceed industry standards for Gigabit Ethernet and Fiber Channel performance and reliability.

Special features

Special features

• 10 Gigabit Ethernet support (10GbE/10GBASE-CU)
• Small Form-factor Pluggable Plus (SFP+) copper cable
• Active cable assembly with line speed of 10.5 Gbps
• Working distance 3 metres (other lengths available)
• Supply voltage 3.3 V, power consumption max. 0.57 W (at one end)
• AWG 24
• Compatible with Ubiquiti Unifi switches supporting DAC 10 Gigabit
