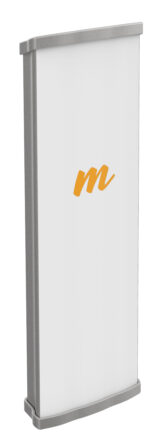

Mimosa N5-45X2 | Sector antenna | 19dBi, 45st, 4,9-6,4 GHz, 2x N-female
270,74 € su PVM
Likutis tiekėjo sandėlyje: 9 vnt.
Likutis tiekėjo sandėlyje: 9 vnt.
Pristatymas / atsiėmimas
| Kurjerio pristatymas | Planuojama: Šeštadienį, Lapkričio 30 d. |
|---|---|
| Atsiimkite paštomate | Planuojama: Šeštadienį, Lapkričio 30 d. |
| Atsiimkite parduotuvėje | Planuojama: Penktadienį, Lapkričio 29 d. |
| * Nemokamas pristatymas perkant šį produktą! | |
Dėmesio! Pristatymo terminai yra preliminarūs, kadangi terminai atsinaujina priklausomai nuo užsakymo pateikimo ir apmokėjimo laiko. Galutinis pristatymo terminas yra pateikiamas Nebrangu.lt pilnai patvirtinus užsakymą.
-
Produkto garantija
-
Netiko, grąžinkite per 14 d.d.
Mokėjimo būdai:
Aprašymas
Breakthrough sector antenna
All the best in one antenna – profit and land cover as in the sector, and no side leaves as in the horns.
No side leaves
Developed using the latest technology and radio frequency knowledge, the N5-45 antenna offers high gain and 42º beam coverage with no side leaves at all.
The highest ratio of primary to secondary radiation on the market
The main to reverse radiation factor of 43dB N5-45 is achieved by metallizing the relevant components and a precisely formed backplate.
Characteristics of the antenna N5-45×2
Profit flow as a function of frequency
N5-45 is an antenna with extremely wide operating frequency range of 4.9 – 6.4 GHz. With an additional 800 MHz outside the standard range, you can easily avoid interference.
Reflection losses as a function of frequency
Compatibility N5-45×2
Standard N antenna connector and two radio streams are the most popular configuration on the market. N5-45×2 is a universal and trouble-free antenna cooperating with access points of other companies. Thanks to its unique parameters, each device will allow full extension of the wings.
| Antenna frequency | 4.9-6.4 GHz |
| Antenna frequency | 5 GHz |
| Antenna frequency | 6 GHz |
| Antenna type | Sector |
| Energy gain | 10dBi – 20dBi |
| Application | Outdoor |
| Compatible with brand | Mimosa |
| Connector type | 2x N FEMALE |
| Cross polarization isolation | >30 dB |
| Electric deviation | 2° |
| Front-to-back ratio | 43 dB |
| Horizontal beamwidth | 45° |
| IP Rating | IP55 |
| MIMO Type | 2×2 |
| Polarization | Diagonal 45° |
| Port-to-Port isolation | >10 dB |
| Vertical beamwidth | 9° |
| Working temperature | -40°C to +55°C |
Savybės / Specifikacija
| Svoris | 4,41 kg |
|---|---|
| Išmatavimai | 0,00 × 0,00 × 0,00 mm |
| Gamintojas |
MIMOSA |
