Mantar RSZ-146/18/10 | Outdoor cabinet | FTTH 16J, depth 100 mm

Mantar, outdoor cabinet RSZ-146/18/10 – FTTH 16J

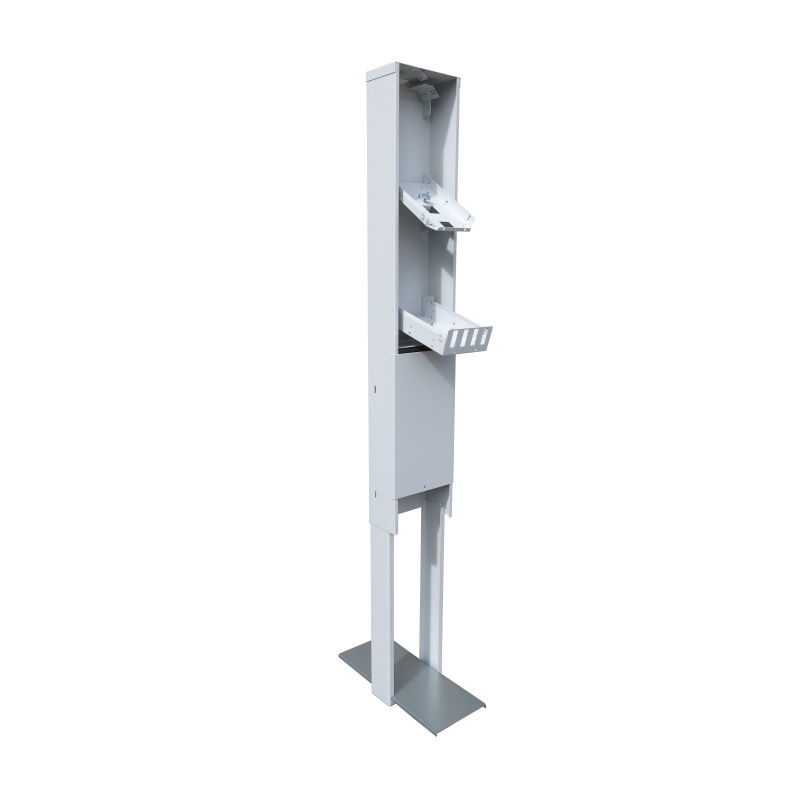

Mantar, outdoor cabinet RSZ-146/18/10 – FTTH 16J for FTTx network designed for outdoor installation. Simple construction allows for free arrangement of optical fibers. In the upper part of the cabinet there are two specially profiled inserts designed for mounting optical network elements such as adapters or weld trays. The insert has a capacity of 2j (2 holes for SC Simplex adapters) and 16j (16 holes for sc Simplex adapters). The inserts can be tilted or completely dismantled for comfortable work. The handles for mounting the inserts, located on the back wall, are also used as cable/rail holders. Additional equipment includes welding trays and adapters. Note: Fiber optic accessories shown in the pictures are not part of the set.

Features:

Features:

• Fully disassembled door with poured polyurethane gasket and sealing plate in the lower part of the post ensure IP65 protection in the upper part of the enclosure.
• Door lockable with 1 hermetic cylinder lock (dedicated key code)
• Body made of sheet metal with Magnelis coating 1.0mm thick
• Poster made of sheet metal with Magnelis coating 1.5 mm thick; installation by digging into the ground to a depth of about 60cm.
• The set includes an anchor plate, which is slid into the special holes of the pedestal for better anchoring
• The total height of the cabinet after the pedestal is about 86cm
• Colour: RAL7035 light grey, thick structure
• 10 year warranty for corrosion protection

Mantar cabinet FTTH

Cabinet elements connected by clinching technology will ensure continuity of the protective coating. If the cabinet is to stand alone, it is recommended to pour a layer of concrete min. 10 cm. If we place it by the wall, fence, post – it is not necessary.
