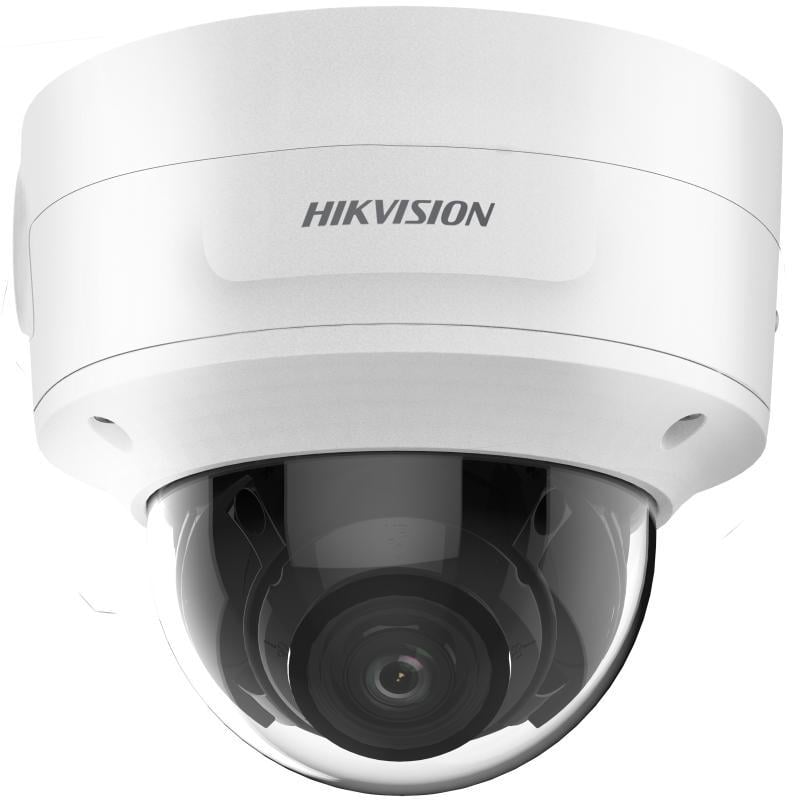

Hikvision dome DS-2CD3766G2T-IZS F2.7-13.5 (balta, 8 MP, 50 m. IR, AcuSense, DarkFighter)
- IP kamera DS-2CD3766G2T-IZS
- Objektyvas: 2.7-13.5 mm
- DOME tipo
- Gamintojas: Hikvision
- AcuSense technologija
- Powered by Darkfighter
- 120dB WDR
- H.265+ vaizdo suspaudimas
- 6 MP raiška
- Motorizuotas varifokalinis objektyvas: 2.7-13.5 mm (~101.6-35.6°)
- IR pašvietimas iki 40 m
- Garsas: 1 įėjimas/1 išėjimas
- Atsparumo klasė: IP67
- Atsparumo klasė: IK10
- PoE maitinimas
572,35 € su PVM
Neturime
Neturime
Pristatymas / atsiėmimas
Atsiprašome, šios prekės šiuo metu neturime. Rekomenduojame rinktis iš: Kategorija: Dome kameros.
Dėmesio! Pristatymo terminai yra preliminarūs, kadangi terminai atsinaujina priklausomai nuo užsakymo pateikimo ir apmokėjimo laiko. Galutinis pristatymo terminas yra pateikiamas Nebrangu.lt pilnai patvirtinus užsakymą.
-
Produkto garantija
-
Netiko, grąžinkite per 14 d.d.
Mokėjimo būdai:
Aprašymas
- Kamera
- Sensorius1/2.4″ Progressive Scan CMOS
- Maks. rezoliucija3200 × 1800
- Min. apšvietimasColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Užrakto greitis1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Kampo keitimasPan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lęšis
- Lęšio tipasVarifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional
- Focal Length & FOV
2.7 to 13.5 mm: horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°
7 to 35 mm: horizontal FOV 34.4° to 12.5°, vertical FOV 19° to 7.1°, diagonal FOV 39.8° to 14.3°t
- Lęšio montavimas2.7 to 13.5 mm: Ø14; 7 to 35 mm: Integrated
- Rainelės tipasAuto-iris
- DiafragamaF1.6
- DORI
- DORI
2.7 to 13.5 mm: D: 68 to 200 m, O: 27 to 79 m, R: 13 to 40 m, I: 6 to 20 m
7 to 35 mm: D: 218 to 580 m, O: 86 to 230 m, R: 43 to 116 m, I: 21 to 58 m
- Apšvietimas
- Papildomo apšviešimo tipasIR
- Papildomo apšvietimo diapazonas2.7 to 13.5 mm: up to 40 m; 7 to 35 mm: up to 50 m
- Išmanus papildomas apšvietimasYes
- IR bangos ilgis850 nm
- HEOP
- Open Resources
Memory: 40 MB,
Smart RAM: 350 MB,
eMMC: 2 GB
- Computing Power1.5 TOPS
- Open CapabilityHEOP 2.0 OpendevSDK
- Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
- Programming LanguageC,C++
- Vaizdas
- Pagrindinis srautas
50 Hz:
20 fps (3200 × 1800)
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3200 × 1800)
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Ketvirtas srautas
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG
- Vaizdo bitų greitis32 Kbps to 16 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)5 fixed regions for main stream and sub-stream
- Tikslinis apkarpymasYes
- Garsas
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimasYes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200,Hik-Connect,Hik-Central
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Diena/Naktis režimasDay,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
- SNR≥ 52 dB
- Privatumo kaukė4 programmable polygon privacy masks
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintis
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Garsas
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
- Perkrovimo mygtukasYes
- Galia12 VDC, max. 100 mA
- Funkcijos
- Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection,audio exception detection,defocus detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
- Išmaniosios funkcijos
- Veido atpažinimasYes
- People CountingYes
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 1.25 A, max. 15 W,Ø5.5 mm coaxial power plug,
PoE: IEEE 802.3at, Class 4, max. 18 W
- MedžiagaMetal
- DydisØ153.3 mm × 111.6 mm (Ø6.0″ × 4.4″)
- Pakuotės dydis261 mm × 217 mm × 197 mm (10.3″ × 8.5″ × 7.8″)
- SvorisApprox. 895 g (2.0 lb.)
- Svoris su įpakavimuApprox. 2000 g (4.4 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Pagrindinės funkcijosHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Patvirtinimai
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015,
RCM: AS/NZS CISPR 32: 2015
- Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
- Apsauga nuo korozijos-Y: NEMA 4X (NEMA 250-2018)
Savybės / Specifikacija
| Gamintojas |
Hikvision |
|---|
