Extralink SC/UPC-SC/APC | Patchcord | LSZH, Single mode, Simplex, G.657B3, 3mm, Easy Flex, 15m
3,89 € su PVM
Likutis tiekėjo sandėlyje: > 10 vnt.
Likutis tiekėjo sandėlyje: > 10 vnt.
Pristatymas / atsiėmimas
| Kurjerio pristatymas | Planuojama: Antradienį, Gruodžio 24 d. |
|---|---|
| Atsiimkite paštomate | Planuojama: Antradienį, Gruodžio 24 d. |
| Atsiimkite parduotuvėje | Planuojama: Pirmadienį, Gruodžio 23 d. |
Dėmesio! Pristatymo terminai yra preliminarūs, kadangi terminai atsinaujina priklausomai nuo užsakymo pateikimo ir apmokėjimo laiko. Galutinis pristatymo terminas yra pateikiamas Nebrangu.lt pilnai patvirtinus užsakymą.
-
Produkto garantija
-
Netiko, grąžinkite per 14 d.d.
Mokėjimo būdai:
Aprašymas

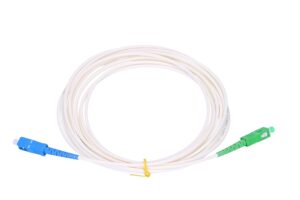

Patchcord SC/UPC-SC/APC SM G.657B3 SIMPLEX 3.0MM 15M LSZH EASY FLEX
This single-mode patchcord is 15 meters long, has a diameter of 3 mm, and is terminated with SC/UPC-SC/APC connectors. It is used for connecting optical network equipment such as switches or converters. Patchcords are also widely used in FTTH networks to connect OLT and ONU/ONT type devices. These cables have a LSZH (Low Smoke Zero Halogen) material classification, which means that their sheath is made of such thermoplastic or thermosetting compounds, which under the influence of high temperatures emit only a limited amount of smoke and do not emit halogen.
Features
Features
- Low attenuation
- Operation over a wide temperature range
- Repeatability of measurements
- Repeatability of parameters
Purpose
Purpose
- FTTH networks
- LAN, WAN
- WDM systems
| Cable category | Single-Mode |
| Fiber standard | G.657.B3 |
| Length | 15m |
| Types of connectors | SC/UPC-SC/APC |
| Cable diameter | 3,0mm |
| Cable diameter | 3 |
| Cable length | 15 |
| Cable type | FTTH |
| Connector 1 | SC/UPC |
| Connector 1 gender | Male |
| Connector 2 | SC/APC |
| Connector 2 gender | Male |
| Connector material | Ceramic |
| Fiber mode structure | Single-mode |
| Fiber optic patchcord type | Simplex |
| Fibre optic type | G.657.B3 |
| Full duplex | No |
| Jacket material | Low smoke zero halogen (LSZH) |
| Package depth | 200 |
| Package height | 600 |
| Package type | Box |
| Package volume | 0.24 |
| Package weight | 9.25 |
| Package width | 200 |
| Plug and Play | Yes |
| Product colour | White |
| Quantity per pack | 100 |
| Test protocol included | Yes |
| Weight | 92 |
Savybės / Specifikacija
| Svoris | 0,09 kg |
|---|---|
| Išmatavimai | 200,00 × 200,00 × 6,00 mm |
| Gamintojas |
EXTRALINK |
