Combo Hobbywing XR10 Justock G3S + 3650SD G2.1 17.5T
99,00 €vnt su PVM
Neturime
Neturime
Pristatymas / atsiėmimas
Atsiprašome, šios prekės šiuo metu neturime. Rekomenduojame rinktis iš: Kategorija: Drive kits.
Dėmesio! Pristatymo terminai yra preliminarūs, kadangi terminai atsinaujina priklausomai nuo užsakymo pateikimo ir apmokėjimo laiko. Galutinis pristatymo terminas yra pateikiamas Nebrangu.lt pilnai patvirtinus užsakymą.
-
Produkto garantija
-
Netiko, grąžinkite per 14 d.d.
Mokėjimo būdai:
Aprašymas

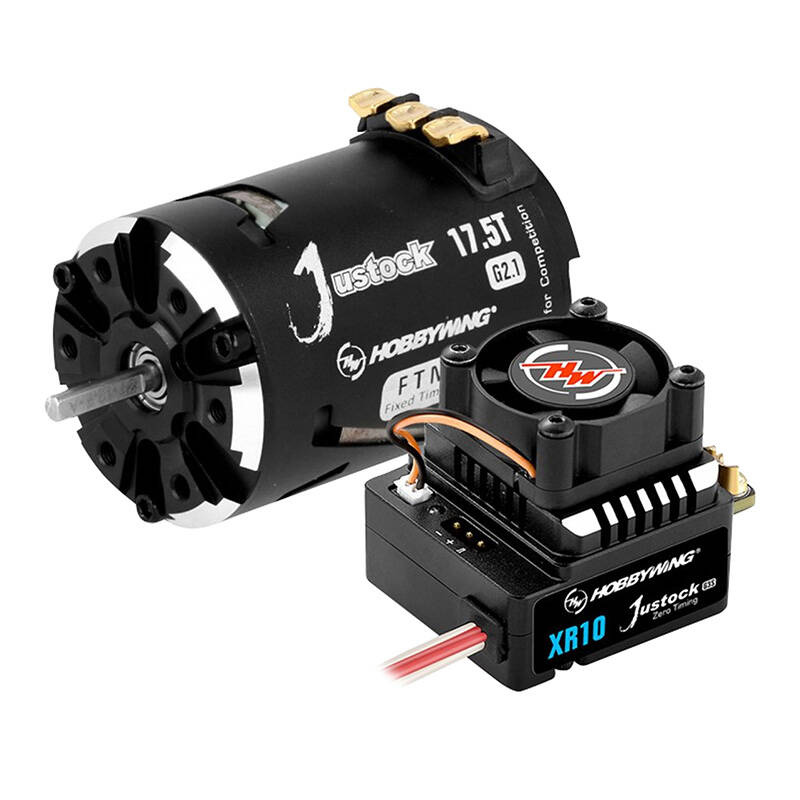

Hobbywing XR10 Justock G3S + 3650SD G2.1 17.5T combo.
The combination of the JUSTOCK 3650SD G2.1 motor and XR10 JUSTOCK G3S ESC controller is the perfect choice for ambitious racing and training. Specifically designed for racing and training rides, the kit offers advanced programming options such as RPM Limit, which allows you to fine-tune the RPM limit from 10,000 RPM to 88,000 RPM. In addition, it is possible to select the direction of engine rotation (CW or CCW), which provides greater flexibility and adaptation of the vehicle to specific track requirements.
Advanced programming options
The XR10 JUSTOCK G3S ESC controller allows you to set the RPM limit in 1,000 RPM increments, which is especially useful during competitions where precision is crucial. This functionality allows you to customize parameters to suit individual needs and racing conditions. In addition, the ability to select the direction of motor rotation (CW or CCW) provides greater flexibility.
Adjustable BEC voltage
The kit offers an adjustable BEC voltage (6V or 7.4V), which allows you to adjust the power to the different electronic components used in your model. This ensures stable power supply and optimal performance of the entire system. A smart fan that starts up when needed and an aluminum chassis effectively dissipate heat, increasing the kit’s durability and reliability during intensive operation.
Robust design and safety features

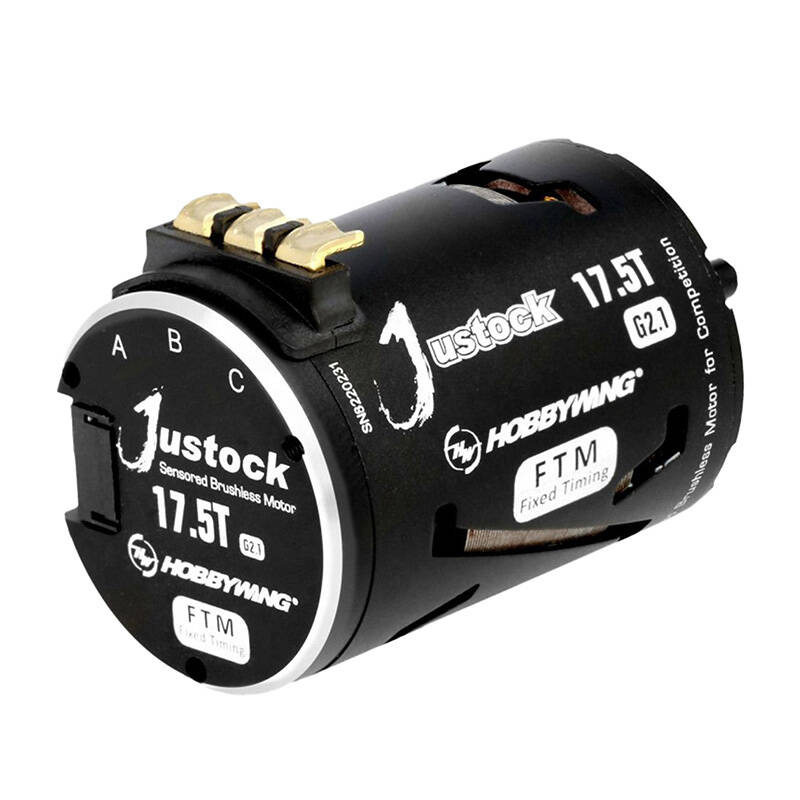

The JUSTOCK 3650SD G2.1 motor features a robust design with a heat-resistant magnet and double-insulated windings. Built-in capacitors save space and ensure reliable operation. Additional safety features, such as reverse polarity and overheating protection, enhance user safety. With the ability to update software, users can always stay up-to-date with the latest features.
Included:
- ESC
- Motor
- Owner’s manual
| Manufacturer | Hobbywing |
|---|---|
| Manufacturer code | HW38020372 |
REGULATOR
| Type | Brushless, with sensor |
|---|---|
| Power (continuous/peak) | 60A / 380A |
| Input voltage | 2S LiPo |
| BEC | 6V / 7.4V at 4A |
| Motor types | Brushless motors (with / without sensor) |
| Motor limitation | >= Motor 10.5 T 3650 |
| Fan | Yes, input via BEC |
| Programming | LCD G2 programming box, LCD Pro programming box, OTA module, separate programming port |
| Dimensions | 40.9 x 33.9 x 32.1 mm |
| Weight | 75,4 g |
| Application | 1/10, 1/12 Competition and training on and off road (e.g. touring car, buggy) |
ENGINE
| Type | Brushless / with sensor |
|---|---|
| Number of magnetic poles | 2 |
| kV value | 2450 KV |
| Windings | 17,5T |
| LiPo cells | 2-3 s |
| No-load current | 3,5A |
| Outer diameter | 35.9 mm |
| Length | 52.5 mm |
| Shaft diameter | 3.17 mm |
| Weight | 176 g |
| Application | 1/10, 1/12 Road and off-road cars (e.g. touring car, buggy) |
Savybės / Specifikacija
| Svoris | 312 g |
|---|---|
| Gamintojas |
Hobbywing |
